32 Channel Temperature Meter Tester Industrial Temperature Datalogger Recorder Thermocouple Thermometer with 7 inches TFT True Color LCD Display Accuracy 0.2%+1℃ Resolution 0.1℃

YFYIQI 32 Channel Temperature Meter Tester Industrial Temperature Datalogger Recorder Thermocouple Thermometer with 7 inches TFT True Color LCD Display Accuracy 0.2%+1℃ Resolution 0.1℃ Feature: 7 inches TFT true color LCD display Histogram display, graph Highest value, lowest value, average value display Cold junction compensation Standard USB disk interface, support for large-capacity storage devices. Standard RS232C interface and USB interface Automatic detection of broken couple Specified channel scan Standard data acquisition software Specification: Graduation:Thermocouple:J/K/T/E/S/N/B/R,PT100,CU50 Accuracy:0.2%+1℃ Range:-20℃~200℃Resolution:0.1℃ Channels:32 channels; Correction:Error correction for each channel Comparator:high & low beep function for each channel Interface:RS232C, U-disc, USB Software:ATS45 data acquisition software Cold Junction:Accuracy: 0.5℃ Other Functions:TFT-LCD True color display, broken thermocouple check function Power Supply:V: 85VAC～260VAC Fre：50Hz/60Hz Power：10VA Dimension & Weight:216x88x300mm weight：3kg Accessories:K thermocouple 8 channels (2 meters/ channel) Application: Suitable for multi-point temperature testing of manufacturers and quality inspection departments in home appliances, motors, electric appliances, thermostats, transformers, ovens, thermal protectors, power supplies, lighting, electric power, LED, etc.

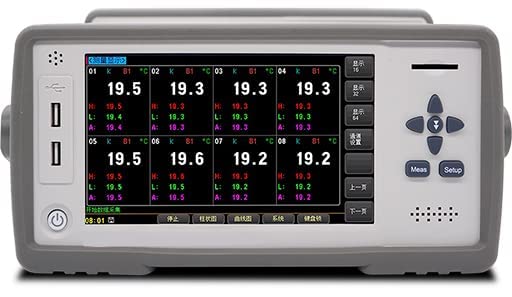

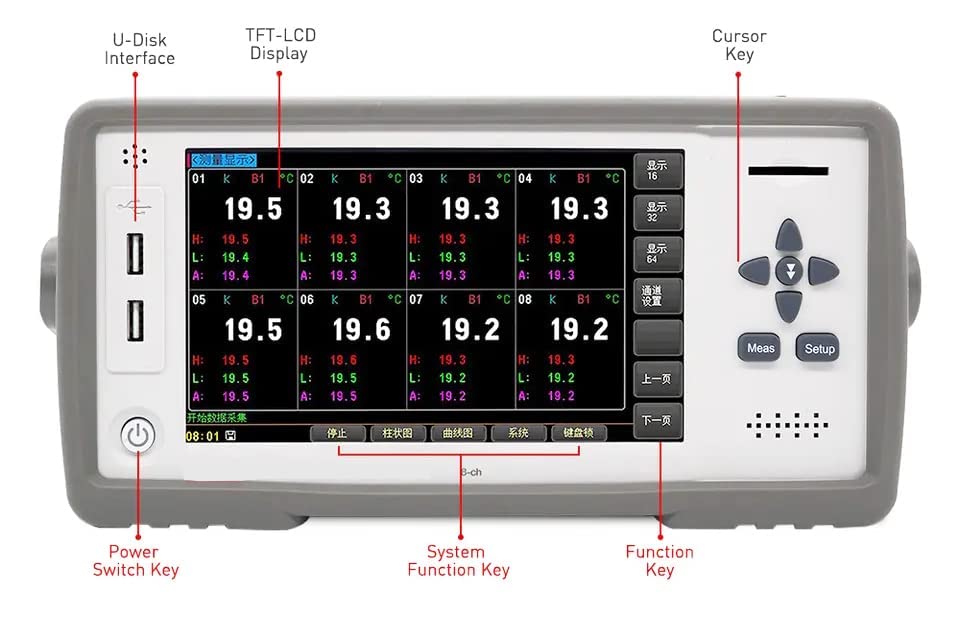

• The multi-channel temperature tester adopts high-performance ARM microprocessor control, 7-inch color LCD screen display, touch screen operation, convenient to view temperature value, temperature change curve, histogram, etc., can simultaneously collect multi-channel temperature data. Ultra-low alarm and communication transmission.
• The series can collect 32 channels of temperature data, compatible with K/N/E/J/T/R/S/B thermocouples, fast response speed, stable data, and has a broken couple detection function . Each channel can be set individually and calibrated independently.
• The instrument supports USB communication, and data collection, analysis and printing can be realized through standard computer software. Support USB disk storage, real-time storage of sampling data. The user can independently correct each channel of data.
• The series adopts fully isolated digital and analog signals, ## (can be tested on-line (isolation voltage 230V rms, 330VDC), support PT100, CU50, safe and reliable.
• Graduation:Thermocouple:J/K/T/E/S/N/B/R,PT100,CU50
