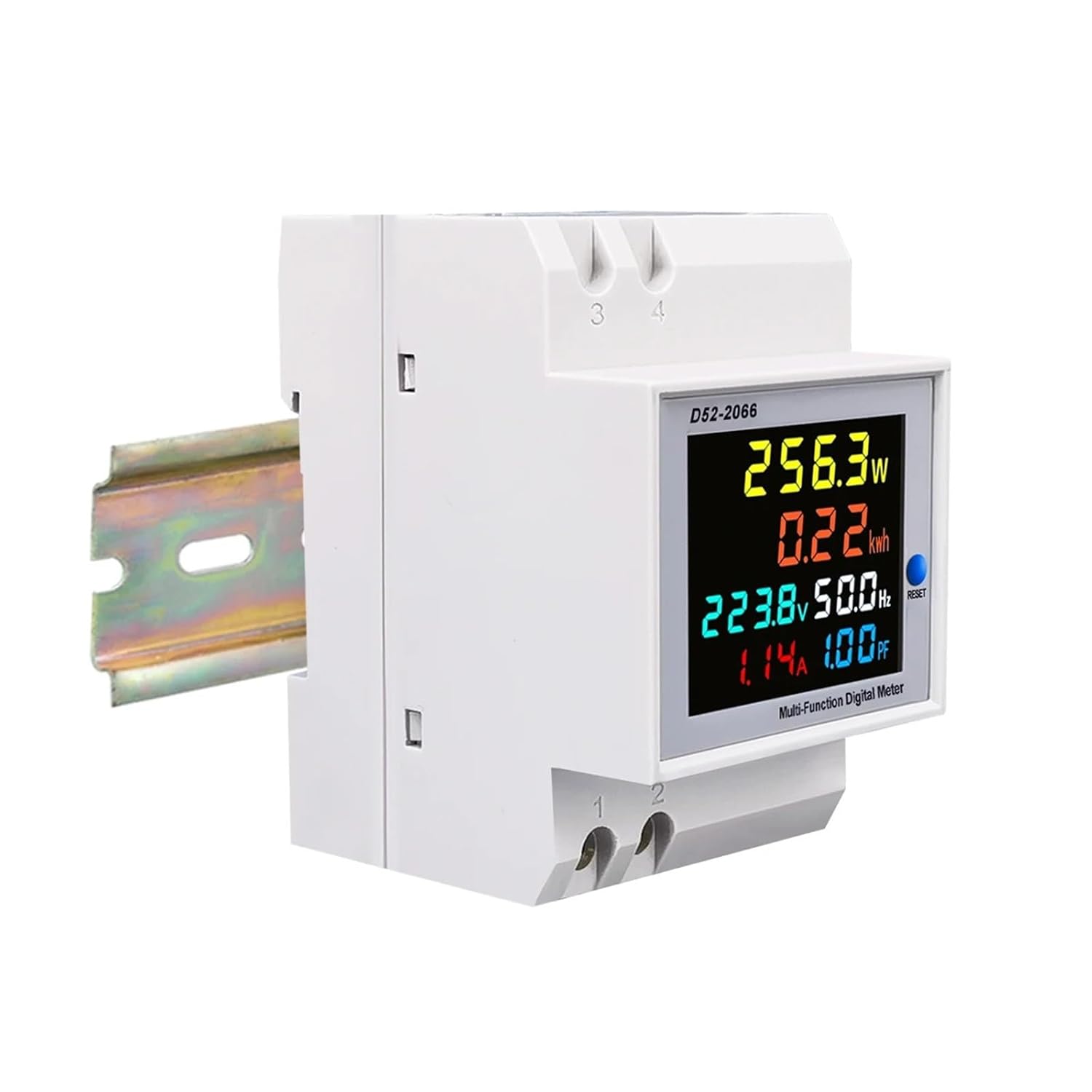

1pc Din Rail AC Monitor 6IN1 110V 220V 380V 100A Voltage Current Power Factor Active KWH Electric Energy Frequency Meter Volt AMP(External CT,AC 40-300V 100A)
Product details
| Management number | 210873571 | Release Date | 2026/04/04 | List Price | $19.94 | Model Number | 210873571 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1.Accuracy:1%+-2 words2. Range: AC voltage: AC 40.0-300.0V or AC 250.0-450.0V (You should select one type of the meter in your order)The measuring range 40-300V without limitation, and it can be used in grid power, photovoltaic and inverter current250-450V only can use for 380VAC Current:AC 0 -100.0A , the current resolution is 0.01A . Frequence: 45.0Hz 65.0Hz Power Factor: 0.00-1.00PF Electric Power: 0-450000W, the electric power resolution is 0.1W when measure electric power between 0-9999.9W, otherwise the electric power resolution is 1W. Electric Energy: 0-99999kwh, the display of electric energy resolution is 0.01kwh when measure electric engery between 0-999.99kwh, the display of electric energy resolution is 0.1kwh when measure electric engery between 1000.0-9999.9kwh and the display of electric energy resolution is 1kwh when measure electric engery larger than 9999.9kwh 3. Speed: 2 times per second 4. Size: 54×80×64 5. Installation: Din-Rail Application Method1. Connect the measure voltage to the 1 and 2 terminal 2. Connections of meter with internal current as graph 1. Make the wire through the hole in the meter and the direction chose arbitrarily. 3. Connections of meter with external current as graph 2. Make the wire through the hole in the meter, and connect the two wires of the secondary to the 3 and 4 terminal. 4. When power on, the meter display the measure parameters. 5. When power on, you can press the button of SAM CK last for 5 seconds, then the electric energy will to be zero and start to cumulate when release the button. And when power off, the meter can save the value of electric energy and go on cumulating data when the meter power-on next. Attention: The meter can only use for measure 45-65Hz AC city electricity.==========Hign-concerned Chemical : NoneCertification : NoneModel Number : D52-2066DIY Supplies : ELECTRICALDimensions : 79*43*48mmOperating Temperature : NormalAccuracy Class : 1% 2 wordsPower Supply : ACDisplay Type : Digital Only
- 1pc Din rail AC monitor 6IN1 110V 220V 380V 100A Voltage Current Power Factor Active KWH Electric energy Frequency meter VOLT AMP
| Brand Name | RQNKJJCE |
|---|---|
| Manufacturer | RQNKJJCE |
| Item Dimensions | 11.81 x 7.87 x 3.94 inches |
