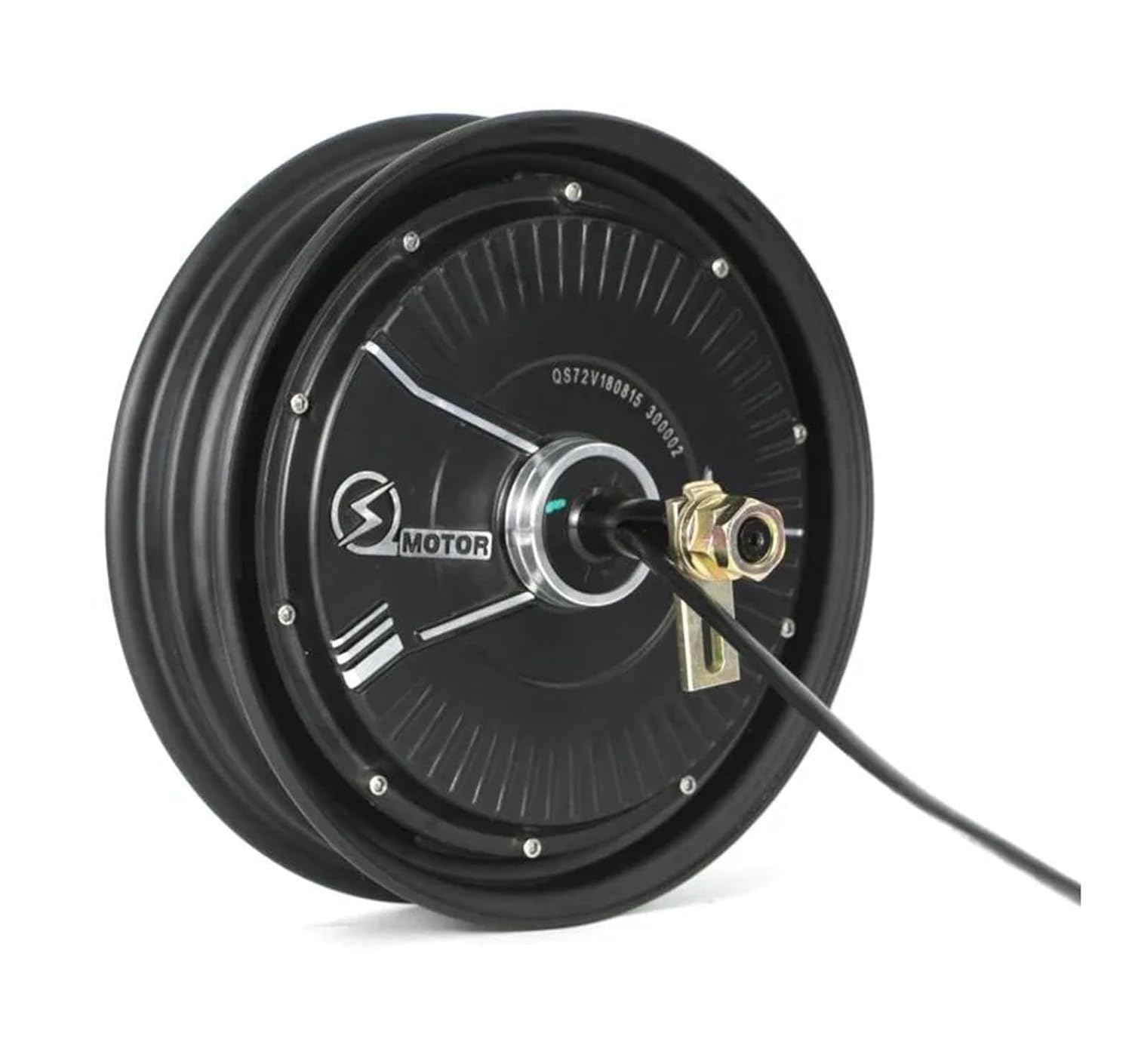

QS212 10inch E-Scooter in-Wheel Hub Motor(35H) 1200W V1 Type

QS212 10inch E-Scooter In-Wheel Hub Motor(35H) 1200W V1TypeMotor Specification:1.Motor Type: BLDC Hub Motor with PermanentMagnets2.Motor design: Double axle out with 10inchrim3.Rim size and material:2.15-10 Iron rim4.Matching Tire: 3.0-10, 3.5-105.Magnet Height: 35MM6.Pole Pairs: 23 pairs7.Rated Power: 1200W 8.Max Power: 2000W9.Rated Voltage: 48V( 60V/72V Can beoptional)10.Speed:45km/h (30-50km/h can be customized)11.MaxNo-load RPM: 620-650RPM12.MaxTorque: 98N.M13.MaxEfficiency: 89-90%14.Ratedcurrent:23A15.Maxcurrent:40A 16.Braketype: Disc brake or Drum brake(Optional)17.RearFork width Compatible With installation: 200mm18.CrossSection of Phase wire: 3 mm219.Axlethread:M1220.Hallsensor phasing angle: 120 degree21.Typeof Sensor: Hall Sensor(3pcs)22.Max.Working Temperature: 70 degree, Peak 120 degree23.Coolingmethod:Air cooling24.WPGrade: IP67==========High-concerned chemical : NoneOther Part Number : 212Placement on Vehicle : REARCountry/Region of Manufacture : ChinaItem Weight : 13KGSItem Height : 200mmOrigin : Mainland ChinaMotor : DC MotorRated Power : 1200wWe’re so glad you’re here! Need help? Just message us – we’re happy to assist.

• Hub motor
• Direct drive, reduces energy loss.
• Regenerative braking, extends range.
• Eliminates transmission parts, saves space.
• Motor direct control, fast dynamic response.
• Independent wheel control, enhances handling.
