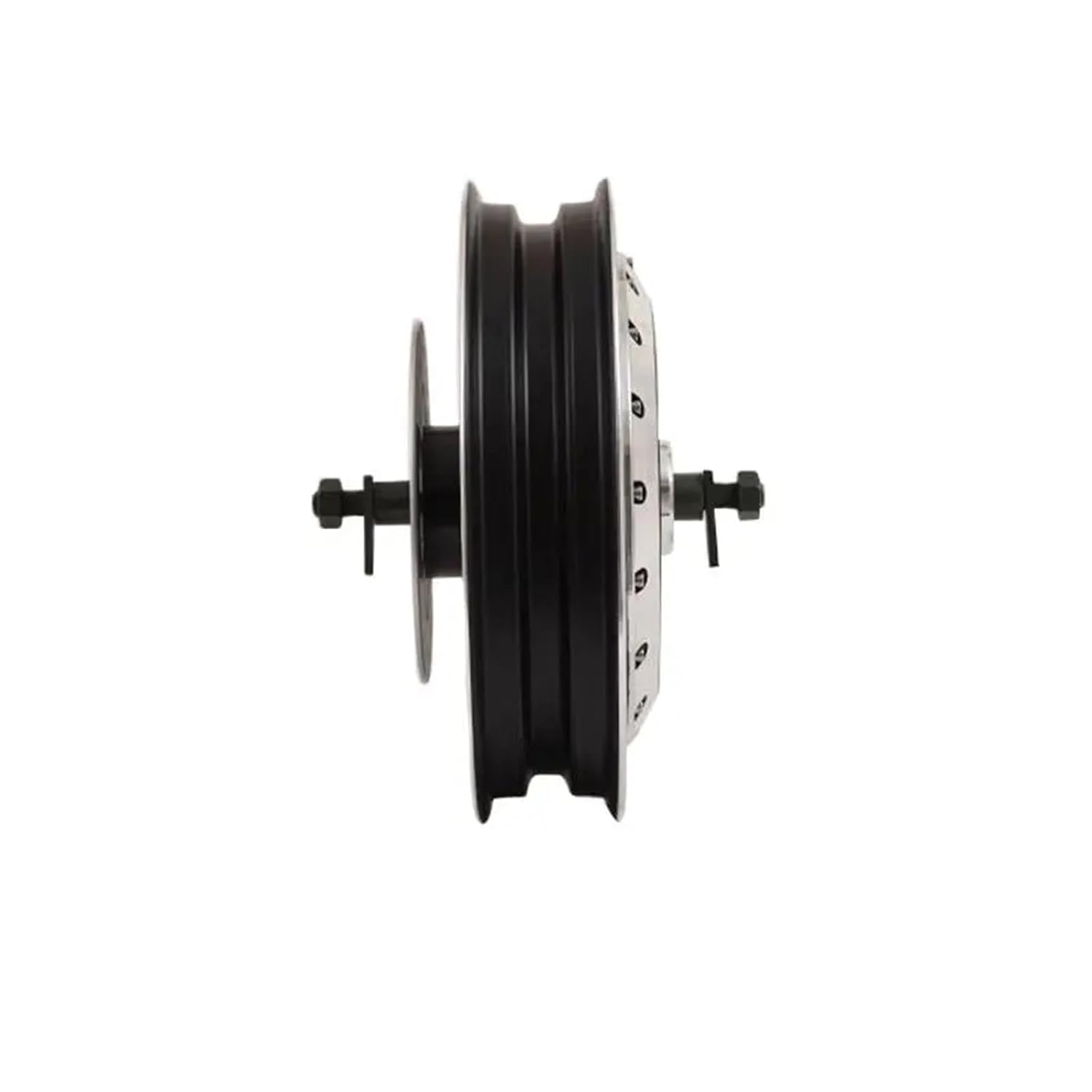

QS 8000W 14inch 273 Electric in-Wheel Hub Wheel Motor V3Type Compatible with Electric Motorcycle

QS 14inch 273 E-Scooter In-Wheel Hub Motor(50H) 8000W V3 Type14inch Hub Motor specially designed Compatible With electric scooters and electric motorcycle, the rated power can be made 2kw,3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-120KMPH.1.Motor Type: BLDC Hub Motor with Permanent Magnets2.Motor design: Double axle out with 14inch Aluminium rim3.Rim size:2.75x14, 2.15x144.Matching Tire: 110/80-14,90/90-145.Magnet Height: 50MM6. Pole Pairs: 16 Pairs7.Rated Power: 8000W8.Max Power:11280W(Peak 14000W)9.Rated Voltage: 72V( 72-144V Can be optional)10. Speed: 120km/h (30-115km/h can be customized)11. Max No-load RPM:1400RPM12. Max Torque: 210N.M13. Max Efficiency: 90%14. Continious current:130A15. Max current:190A ,Peak 260A16. Brake type: Disc brake17. Rear Fork width Compatible With installation: 200mm18. Winding Core material: Aluminium19. Cross Section of Phase wire: 16 mm220. Hall sensor phasing angle: 120 degree21. Temperature Sensor: Optional22. Max. Working Temperature: 70 degree, Peak 120 degree23. WP Grade: IP5424. N.W./ G..W. : 22kgs / 23kgs25. Package Size: 44*43*34CMMotor with 2.75x14 rim drawing:Application:==========High-concerned chemical : NonePlacement on Vehicle : REARCountry/Region of Manufacture : CHINAInterchange Part Number : 273Item Weight : 26KGSItem Height : 200MMItem Width : 14INCHItem Length : 14INCHManufacturer Part Number : 273Origin : Mainland ChinaMotor : DC MotorMaterial : Alloy wheelApplication : Compatible With electric motorcycleis_customized : YesRated power : 8000WWheel size : 14inchRated voltage : 72V-144V optionalWe’re so glad you’re here! Need help? Just message us – we’re happy to assist.

• Hub motor
• Direct drive, reduces energy loss.
• Regenerative braking, extends range.
• Eliminates transmission parts, saves space.
• Motor direct control, fast dynamic response.
• Independent wheel control, enhances handling.
