| Management number | 209911209 | Release Date | 2026/04/02 | List Price | $11.60 | Model Number | 209911209 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

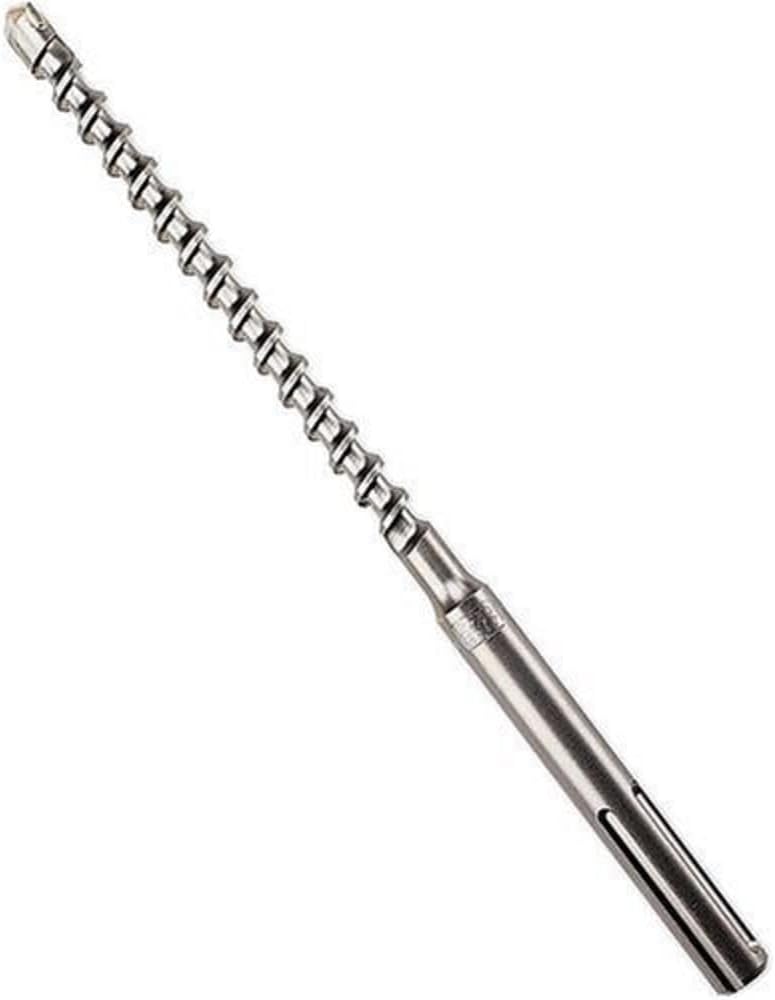

Product Description BOSCH carbide rotary hammer bits feature tips that stay sharper longer and deliver more holes within specification than competitive bits. Manufactured to ANSI specification B212.14. SDS-max rotary hammer bits fit BOSCH SDS-max hammers and competitive SDS-max drive hammers and Hilti hammers using TE-Y and TE-FY shanks. Unrivaled power from solid carbide head with robust S-cutter design for added speed and life. From the Manufacturer The Bosch HC5020 5/8-inch-rotary hammer bit is part of the SDS-max Wild Bore line from Bosch. This SDS-max Wild Bore bit features Quadro-X design series. This bit features a patented extra strength tip for longer life and faster drilling. The 4 cutter head provides fast, accurate drilling and true round holes for anchors and the increased flute geometry increases faster dust removal and less vibration. The useable length of this bit is 8-inches, the overall length is 12-inches, and the diameter is 5/8-inch.
| UPC | 000346208078 |
|---|---|
| Model | HC5020 |
| Brand Name | Bosch |
| Shank Type | SDS-Max |
| Unit Count | 1.0 Count |
| Item Weight | 0.8 Pounds |
| Point Style | Center Point |
| Finish Types | Gray |
| Manufacturer | Bosch |
| Material Type | Carbide |
| Item Type Name | BOSCH HC5020 5/8 In. x 13 In. SDS-max Speed-X Carbide Rotary Hammer Bit for Concrete Drilling |
| Tool Flute Type | Straight |
| Cutting Diameter | 15.88 Millimeters |
| Number of Flutes | 1 |
| Included Components | Unit^Instruction Guide |
| Cutting Angle String | 120 Degrees |
| Warranty Description | Warranty |
| Minimum Bore Diameter | 0.5 Inches |
| Surface Recommendation | Alloy Steel,Steel |
| Global Trade Identification Number | 00000346208078 |
