LILLIPUT AVMatrix PTZ1271-30X-POE Full HD PTZ Conference Camera with 1080p / 2MP - PoE Supported - 30x Optical Zoom

AVMatrix PTZ1271-30X-POE Full HD PTZ Conference Camera with 1080p / 2MP - PoE Supported - 30x Optical Zoom 1/2.8 Inch HD CMOS Sensor, 30X Optical Zoom HDMI & 3G-SDI Video Output, PoE Power RS-232/RS-485 Serial Control, Cascading Streaming Protocols: RTSP, RTMP, SRT & NDIHX (Optional) Control Protocols: VISCA over IP, VISCA, PELCO-D/P Tripod, Wall & Ceiling Mounting Specifications: Interfaces: Video Out: SDI, HDMI Audio Input: 3.5mm audio (Line-level) Control Interface: RS-232 In and Out, RS-485 In Control Protocol: VISCA over IP, VISCA, PELCO-D/P Video Format: HDMI/ SDI Video up to 1080P60 IP Streaming: RTSP/ RTMP/SRT LAN Port: IP Streaming: RTSP/ RTMP/ SRT Camera Parameters: Focal Length: F-4.3-129mm View Angle: 2.34° (tele), 65.1° (wide) Aperture Value: F1.6-F4.7 Sensor: 1/2.8 inch, High quality HD CMOS sensor Effective Pixels: 16:9, 2.07 Megapixel Digital Zoom: 10x Minimum Illumination: 0.5Lux (F1.8, AGC ON) DNR: 2D & 3D DNR SNR: >55dB White Balance: Auto Manual/ One Push/ 3000K/3500K/ 4000K/ 4500K/ 5000K/ 5500K/6000K/ 6500K/ 7000K WDR: OFF/ Dynamic level adjustment Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve Other Camera Parameters: Auto Focus, Auto Aperture, Auto Electronic Shutter, BLC PTZ Parameters: Rotation Angle: Pan: 170". Tilt: -30°+90 Rotation Speed: Pan: 60°/sec (Range: 0.1-180°/sec), Tilt: 30°/sec (Range: 0.1-80°/sec) Preset Number: 255 presets (10 presets by remote controller) Others: Input Voltage: DC12V 10% Input Current: 1A (Max) Consumption: 12W (Max) Temperature: Working Temperature: -10-+50°C, Store Temperature: -10~+60°C Working Humidity: 20-80% RH (no condensation), Store Humidity: 20-95% RH (no condensation) Dimension: 170x170x180.31mm Weight: Net weight: 1.25kg, Gross weight: 2.1kg Accessories: Power Supply, RS232 Control Cable, Remoter, Manual Item Includes: 1x PTZ1271-30X-POE PTZ Camera 1x Power 1x RS232 Control Cable 1x Remote 1x User Manual

• AVMatrix PTZ1271-30X-POE Full HD PTZ Conference Camera with 1080p / 2MP - PoE Supported - 30x Optical Zoom

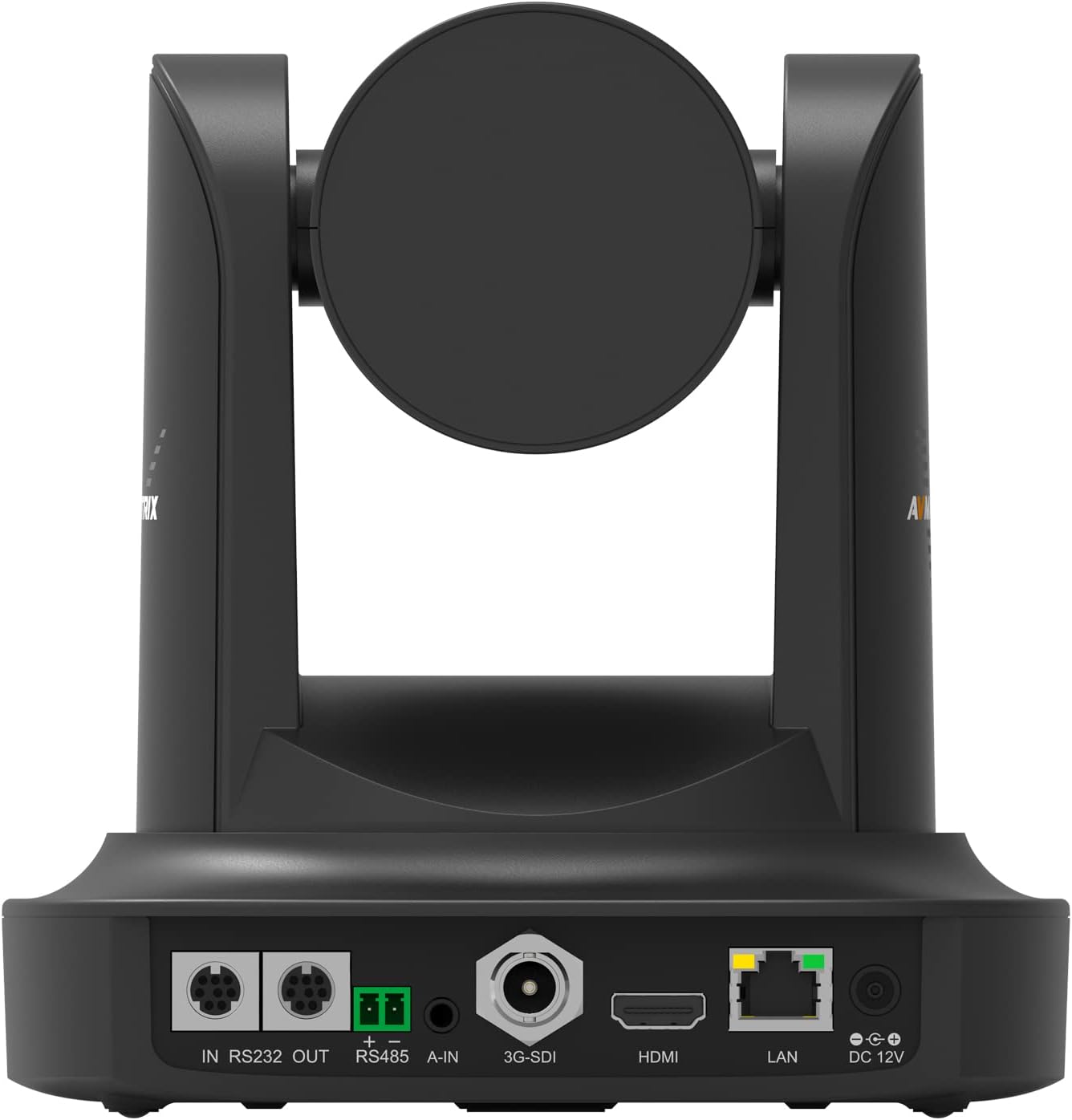

• The AVMatrix PTZ1271-30X-POE PTZ Camera includes various interfaces. SDI, HDMI, and IP Outputs allow users to output an up to FHD 1080p signal simultaneously. The LAN port supports Power Over Ethernet(PoE). NDI HX 5.0(optional) and IP streaming via RTSP, RTMP protocols. It offers an audio line-in for NDI/IP streams. Users can control the PTZ camera easily via LAN Port or RS-232 / RS-485 serial port.
• Zooms Lens Optional Provides 30x optical zoom lens for effective close-up and wide-angle shooting. Quick pan and tilt speeds and picture controls like brightness, color, saturation, contrast, sharpness provide precision control of your images.
• Easily Control The PTZ Camera can be easily controlled by IR remote control, web UI as well as the joystick camera controller via IP or serial port. Multiple control protocols are supported including VISCA over IP, VISCA, PELCO-D, PELCO-P
• A Variety of Installation Support image flip function, the bottom thread of the camera can be used for mounting suitable for tripod mounting wall mounting, and ceiling mounting. Widely used in many applications in broadcasting, education, church and other field
