FREENOVE Media Kit for ESP32-S3 ESP32 S3 CAM 3.5 Inch Screen, Supporting OpenAI/XiaoZhiAI, Dual-core 32-bit 240 MHz Microcontroller Camera Wireless, Dual Speakers Dual Microphones, Tutorial Code
Product details
| Management number | 209090701 | Release Date | 2026/03/29 | List Price | $17.98 | Model Number | 209090701 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Purchase Options: This kit has several purchasing options. Each option has some differences in hardware, but the function is basically the same. Overview: ESP32-S3-WROOM is a small but powerful controller with onboard wireless and camera. This kit helps you learn ESP32-S3, LVGL GUI library and connection with AI (LLM). We provide free technical support to help you with any questions and problems. Tutorial and Code: Comes with detailed tutorial and code. (Download or view online, no paper tutorial.) Including several typical projects with code and explanations. The tutorial link can be found on the product box. Contents of Main Tutorial: Preface Chapter 0 Assembly Chapter 1 LEDPixel Test Chapter 2 Battery Voltage Detection Chapter 3 5-Way Navigation Switch Test Chapter 4 Memory Card Read & Write Test Chapter 5 Simple Tone Test Chapter 6 Play MP3 Test Chapter 7 Video Web Server Chapter 8 TFT Clock Chapter 9 Camera TFT Test Chapter 10 Record Test Chapter 11 ESP32_SR Chapter 12 LVGL Chapter 13 LVGL LEDPixel Chapter 14 LVGL Camera Chapter 15 LVGL Picture Chapter 16 LVGL Music Chapter 17 LVGL Sound Recorder Chapter 18 LVGL Multifunctionality Chapter 19 LVGL Multifunctionality UI What's Next? Contents of OpenAI Tutorial: Please refer to tutorial for details. Contents of XiaoZhiAI Tutorial: Please refer to tutorial for details.
- Talk to AI (LLM): Continuous and natural communication, just like talking to a human, without needing to press a button or say a wake-up word (Notes: Service provided by OpenAI / XiaoZhiAI, registration and login required, may be unavailable in some regions. OpenAl: Paid service with a minimum of $5 for tokens, wide country / language support; XiaoZhiAl: Free service, limited country / language availability. Please refer to tutorial for details)
- ESP32-S3 WROOM Board: Dual-core 32-bit microprocessor up to 240 MHz, 16 MB flash, 8 MB PSRAM, onboard 2.4 GHz Wi-Fi and Bluetooth 5 (LE), USB code uploader and USB-OTG, camera, memory card slot (Comes with 1GB memory card and card reader)

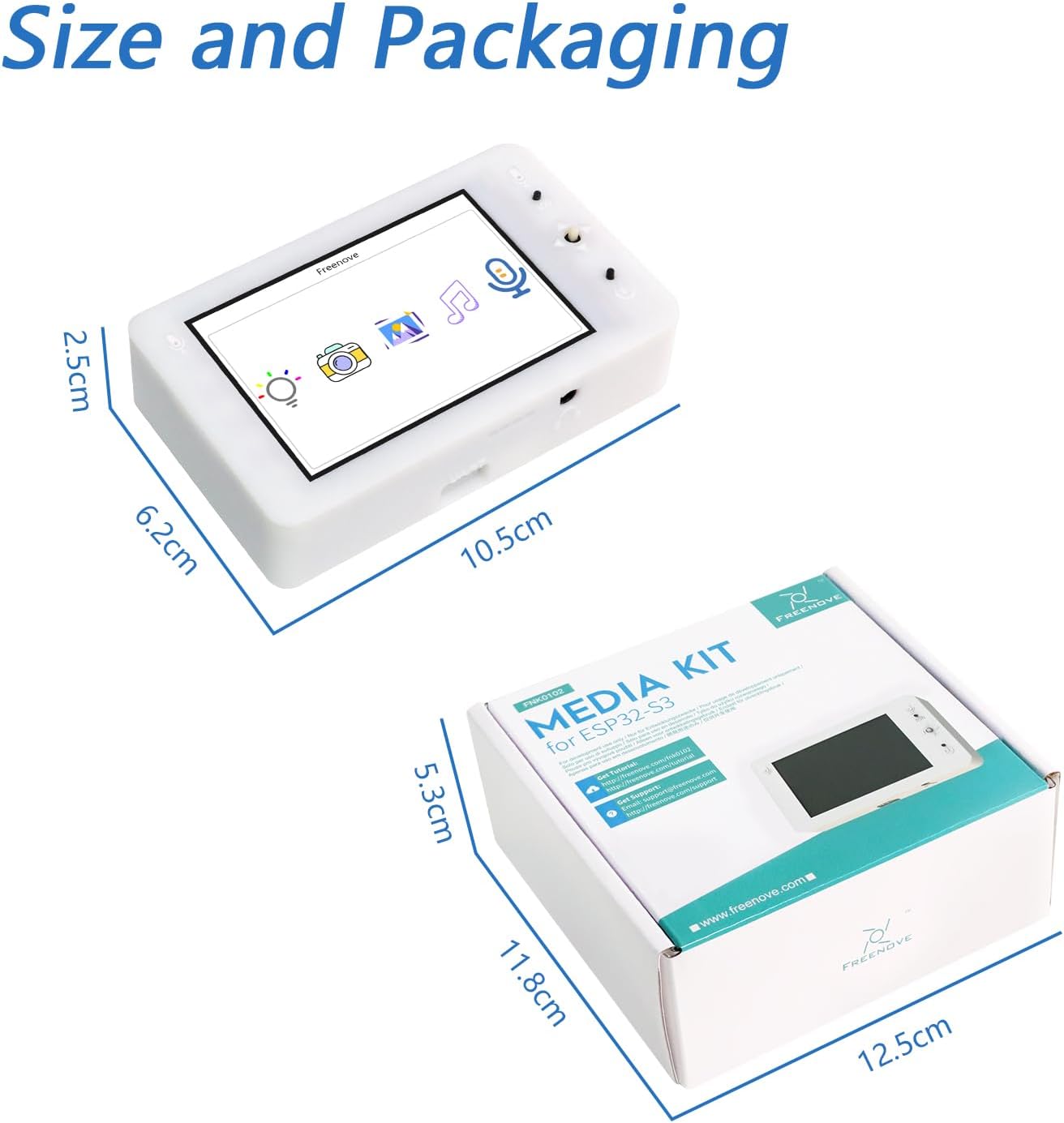

- Media Extension Board: 3.5 inch colorful screen (480 x 320 pixels), five-way navigation switch, RGB LEDs, power button, dual microphones, dual speakers, 3.5 mm audio output, battery connector (Battery NOT included, can use USB power) (Comes with 3D printed shell)
- Tutorial and Code: Example projects for ESP32-S3 and Media Board, LVGL GUI library, and connection with AI (The tutorial link can be found on the product box, no paper tutorial)
- Comprehensive Project: An embedded system example with RGB LED controller, camera, gallery, music player, voice recorder
| Brand | FREENOVE |
|---|---|
| Color | 3.5 Inch Screen |
| RAM Type | SDRAM |
| Model Name | FNK0102H |
| Model Year | 2023 |
| Resolution | 480 x 320 |
| Style Name | Customizable |
| Item Weight | 215 Grams |
| Screen Size | 3.5 Inches |
| Aspect Ratio | 16:10 |
| Display Type | LCD |
| Manufacturer | Freenove |
| Memory Speed | 240 MHz |
| Model Number | FNK0102H |
| Speaker Type | Built-in stereo speakers |
| BuiltIn Media | board |
| Keyboard Layout | QWERTY |
| Power Plug Type | No Plug |
| Processor Brand | Espressif |
| Processor Count | 2 |
| Processor Speed | 240 MHz |
| Total Usb Ports | 1 |
| CPU Model Number | ESP32-S3 |
| Processor Socket | BGA 413 |
| Graphics Card Ram | 8 MB |
| Graphics Ram Type | SDRAM |
| Native Resolution | 480 x 320 |
| Compatible Devices | Headphone, Keyboard, Mouse, Speaker, Storage Device |
| Hardware Interface | USB |
| Memory Clock Speed | 240 MHz |
| Additional Features | Speakers, Microphone, Screen |
| Speaker Description | Dual speakers |
| Wireless Technology | Bluetooth, Wi-Fi |
| Graphics Description | Integrated |
| HumanInterface Input | Buttons |
| Keyboard Description | Wired, Full-size Keyboard |
| RAM Memory Installed | 8 MB |
| Warranty Description | 1 |
| Wireless Compability | 2.4 GHz Radio Frequency |
| RAM Memory Technology | PSRAM |
| Optical Storage Device | SD card |
| CPU Model Speed Maximum | 240 MHz |
| Connectivity Technology | Bluetooth, Wi-Fi |
| Graphics Card Interface | Integrated |
| Memory Storage Capacity | 1 GB |
| Specific Uses For Product | Education |
| Display Resolution Maximum | 480x320 |
| Cache Memory Installed Size | 8 MB |
| Wireless Network Technology | Wi-Fi |
